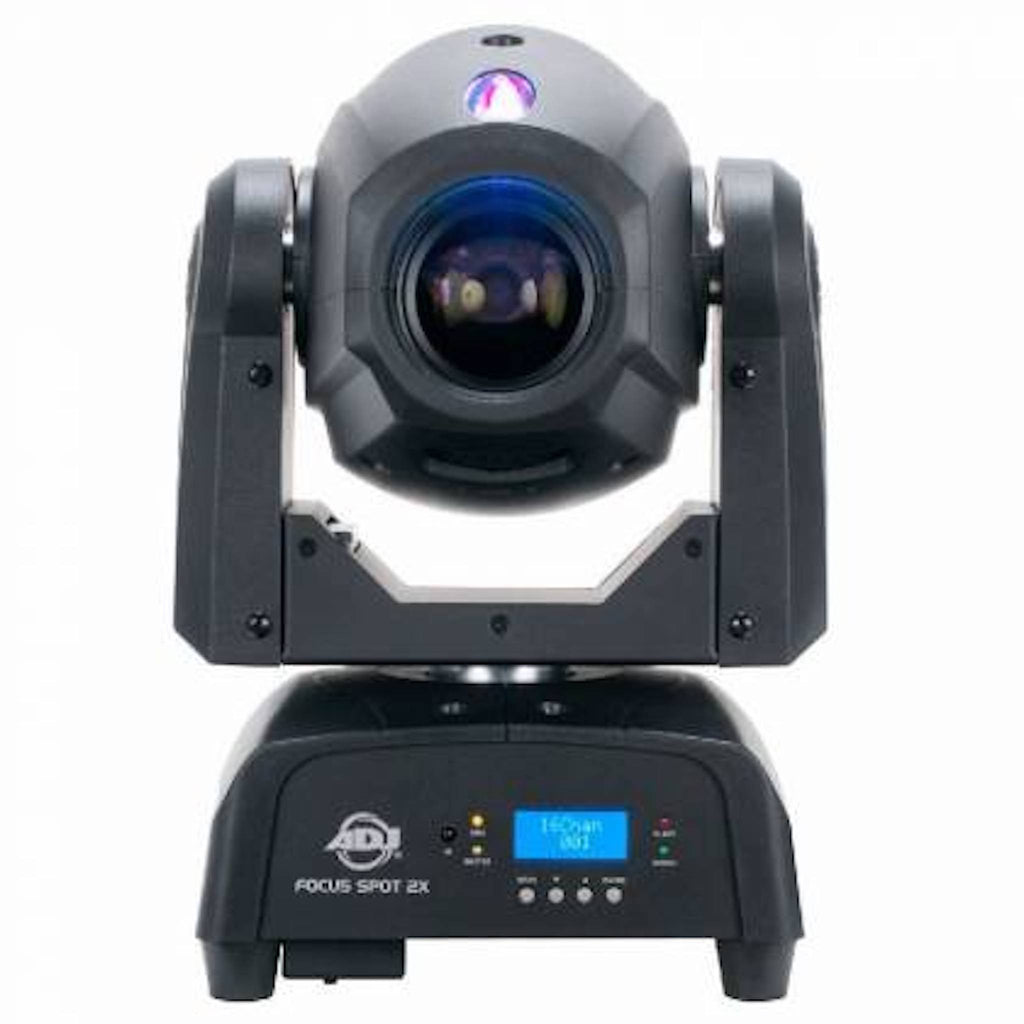

The ADJ Focus Spot 2X is a 100W LED Moving Head with a 3W UV LED included for black lighting or additional color hues.
It features two prism effects; a 6-facet circular prism and a 6-facet linear prism. In addition, ADJ has fitted the FS2X with a GOBO wheel with replaceable, rotating and indexable GOBOs. The GOBOs are easy to replace by removing the top housing with one screw that's on a hinge. GOBOs easily lock in and out of the GOBO wheel. This mover is also equipped with motorized focus, Gobo Indexing, EZ Gobo replacement and a manual zoom knob near the lens to change the beam angle from 16 ~ 19 degrees.
The Focus Spot 2X is extremely versatile and has everything clubs, theaters, churches, concert productions and lighting professionals are looking for in a LED spot moving head. It has 16 & 18 DMX channel modes, Pan/Tilt Inversion, 16-Bit Fine Pan/Tilt, 3-pin DMX In/Out, locking In/Out power connectors, and a 4-Button DMX LCD menu.
The Focus Spot 2X is fitted with 8 colors plus spot and split colors. It has 6 rotating, replaceable GOBO patterns plus spot. The color wheel and GOBO wheel work independent of each other. All GOBOs are indexable.
Features:
-
Motorized Focus
-
Manual Zoom knob on head: 16 ~ 19 degree beam angle
-
Fan cooled
-
Strobe/Pulse effect; random strobe slow to fast
-
UC IR & Airstream IR Compatible (Sold Separately)
Specs:
-
Light Source: 1 x 100W Cold White LED (7600°K, 50,000 hr.), 1 x 3W UV LED
-
Color Wheel: 8 Colors + White & Split Colors
-
PrConnections: 3-pin DMX In/Out, Twist locking power In/Out connections on rear to daisy chain power (up to 9 Focus Spot 2X's @ 120V and 16 Focus Spot 2X's @ 230V)ism Wheel:6-facet circular prism, 6-facet linear prism
-
Electrical: Multi-voltage Operation: 100-240V, 50Hz/60Hz, Power Consumption: 180W
-
Dimensions (LxWxH): 9.33" x 9.10" x 15.15"/ 237 x 231 x 385mm
-
Weight: 14.5 lbs. / 6.5 kgs.
-
What's Included: Includes Omega bracket for truss mounting, Includes power cable
-
Approvals: CE, ETL Approved
GOBO Wheel:
-
6 Rotating, replaceable Gobos + Spot
-
Gobo Size: Outer: 23mm/Inner:19mm/Thickness: 0.5mm
-
Gobo Indexing
-
EZ Gobo replacement with hinged head cover
-
Gobo Shake effect
Control:
-
3 Operational Modes: Sound Active, Show Mode, & DMX Controlled
-
Master / Slave-able
-
4 Built-in lighting shows
-
16 & 18 DMX channel modes
-
Electronic Dimming: 0% - 100%
-
5 Dimmer Curves
-
4-Button DMX LED menu
-
Stepper motors with micro stepping
-
With Wired Digital Communication Network
Pan/Tilt:
-
Fast and precise Pan/Tilt Movements
-
16-Bit Fine Pan/Tilt control
-
Pan: 540-degree
-
Tilt: 270-degree
-
Pan/Tilt Invert Mode
-
4, Built-In, Pan/Tilt Target Modes
-
The Focus Spot 2X is extremely versatile and has everything clubs, theaters, churches, concert productions and lighting professionals are looking for in a LED spot moving head.
